To handle your needs as soon as possible, we need the following information:
Fax：+886-4-25152413
E-Mail：marcolin@zfgta.com.tw

1. Motor (with motor data sheet)

motor brand：

type：

size：

nominal power(kW)：

max. torque(Nm)：

motor operating speedn₁ - n₂(rpm) at constant power：

max. speed(rpm)：

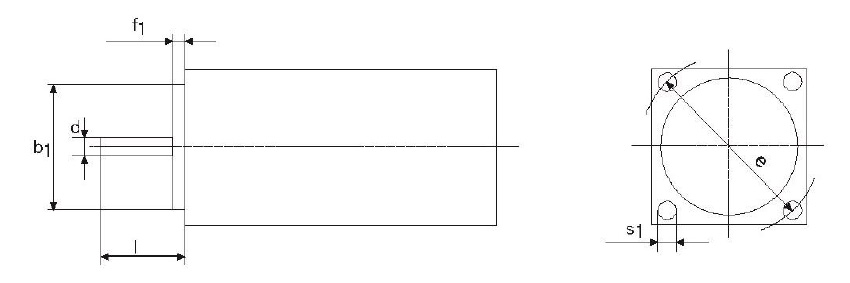

motor shaft diameter d(mm)：

motor shaft length l(mm)：

pilot diameter b₁(mm)：

pilot width f₁(mm)：

pcd e₁(mm)：

hole diameter s₁(mm)：

fitting key lxbxh(mm)：

Motor shaft with keyway
Motor shaft with shaft seal
Full-key balanced motor shaft
Motor sahft without shaft sel
Half-key balanced motor shaft

2. GTP-2G type

2G120
2G121
2G250
2G300
2G600
2G800
2G801
2G802
  standard option
gearbox interface Closed with hub, without bearing with adpater plate and shaft seal
with input flange(2G300/600/800)
Ratio i 4.00 5.0(2G600)
5.5(2G250/300)
4.91(2G120/121)
Installation position B5
B5 shifting unit on the right		 V1
V3
Output bearings Roller bearing Angular-contact ball bearing
self aligning and roller bearing(2G800/801/802)
Lubrication system Splash type lubrication recirculating lubrication with oil tank
Recirculating lubrication with heat exchanger
Gearbox output Gearbox with output flange
100mm(2G120/121)
118mm(2G250)
130mm(2G300)
150mm(2G600)
180mm(2G800/801/802)		 Gearbox with output shaft
38mm(2G121/121)INLINE
42mm(2G250/300)INLINE
42mm(2G250/300)
55mm(2G300)
65mm(2G600/800/801/802)
Torsional backlash at gearbox output ≦20arcmin
≦15arcmin
≦40arcmin (2G800/801/802)

Name：

Tel：

EMail：

Company：

Opinion：
